Reactive Power Compensation;Harmonic Control;Three-phase Unbalance Control;high performance, compact, flexible, modular and cost-effective type of active power filters that provide an instantaneous and effective response to power quality problems in low or high voltage electric power systems.

30Kvar  ~ 400Kvar SVG Static Var Generator

FCL/Modular Three Phase 50Hz 400V




                 ◆Reactive Power Compensation

                 ◆Harmonic Control

                 ◆Three-phase Unbalance Control


-Product Description


?Also known as active power factor compensators(APFC) or instantaneous stepless reactive power compensators,

 are the ultimate answer to power quality problems caused by low power factor

and reactive power demand for a wide range of segments and applications.


?They are a high performance, compact, flexible, modular and cost-effective type of active power filters

 that provide an instantaneous and effective response to power quality problems in low or high voltage electric power systems.


?They enable longer equipment lifetime,higher process reliability, improved power system capacity and stability,

and reduced energy losses,complying with most demanding power quality standards and grid codes.

photobank (5).jpg


? Low power factor increases the    active   energy losses of installations and affects their stability.

It is typically caused by inductive or capacitive loads that demand extra reactive power to perform properly.

Other contributors to low power factor are harmonic currents produced by non-linear loads and the change of load in the electric power system.

photobank (4).jpg


  photobank (3).png

〓   Working Principle   〓


?The principle of the SVG is very similar to that of Active Power Filter,When the load is generating inductive

or capacitive current,it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates

 leading or lagging current into the grid,making the phase angle of current almost the same as that of voltage on the transformer side,

which means fundamental power factor is unit. YIY-SVG is also capable of correcting load imbalance.

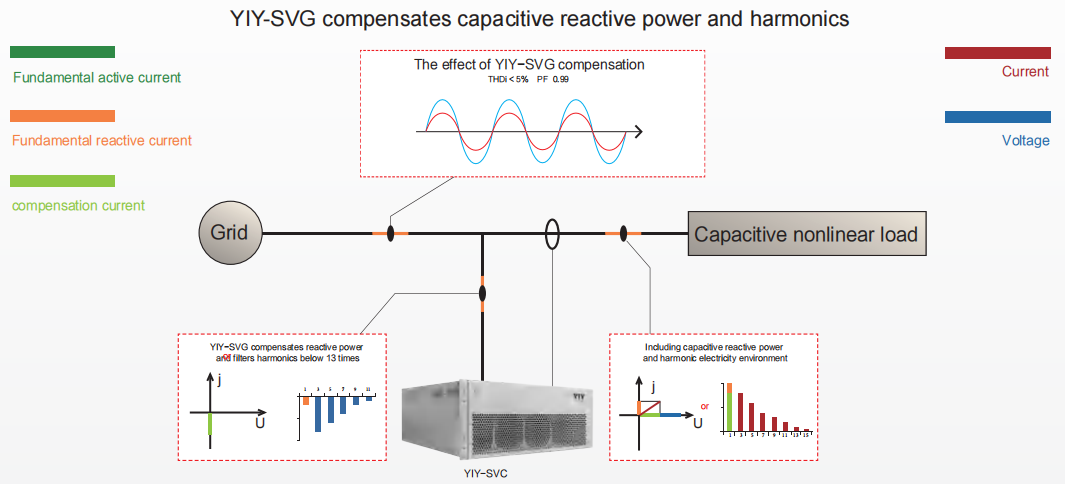

                                                 ▼Capacitive nonlinear load

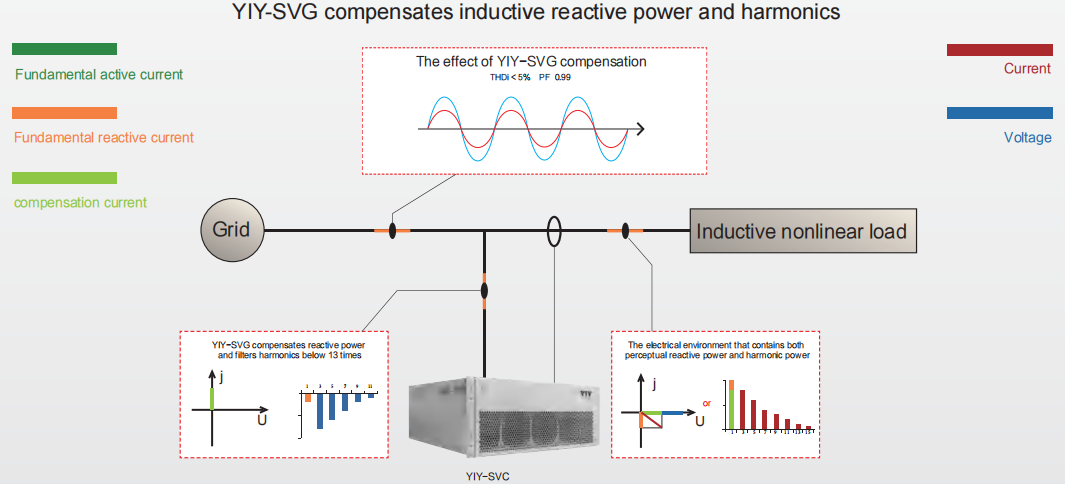

                                                  ▼Inductive nonlinear load



-Specification


Modular: 30Kvar 50Kvar 75Kvar 100Kvar


FCL: 100Kvar 200Kvar 250Kvar 300Kvar 400Kvar


400V Series

Max neutral wire current

35kVar / 50kVar/ 75kVar /100kVar

Nominal voltage

AC380V ±20%

Rated frequency

50Hz ±5%

Network

Three phase three or four wire

Response time

＜10ms

Reactive power compensation rate

＞95%

Machine efficiency

＞97%

Switching frequency

16kHz

Feature selection

Deal with harmonics / Deal with harmonics and reactive power / Deal with harmonics and three-phase unbalance / Three options

Numbers in parallel

No limitation.A single centralized monitoring module can be equipped with up  8 power modules

Communication methods

Two-channel RS185 communication interface (support GPRS/WIFI wireless communication)

Altitude without derating

＜2000m

Temperature

-20 ~ +50℃

Humidity

＜90%RH, the average monthly minimum temperature is 25℃ without condensation on the surface

Pollution level

Below level Ⅲ

Noise

＜60dB


Installation

Rack/wall hanging


Into the way of line

Back entry(rack type)/ top entry (wall-mounted)

Protection grade

IP20


Protection function

Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc.



〓   Product Appearance   〓


▼Modular


photobank (1).png


▼FCL




-Detailed Images

photobank (3).jpgphotobank (1).pngsvg2.png


-Company Profile



-Exihibition


photobank (3).jpg


-FAQ


Q1.Tell me the standard of package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.

Q2.Do you accept OEM/ODM?
A. It is totally not a problem. We can prepare relative documents to the foreign affairs office or other offices to apply for this certificate.

Q3.Would you accept to use our logo?
A.Yes,it is available. But we have MOQ for that.For details, pls talk to the customer service.

Q4.Where is your market?
A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

Q5.What kind of certificate do you have?
A.We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 as customer requires.But for details and fee, we need to talk in detail with the sale manager.
